D-Trans 2040 Automatic Loading System For Two Laser Cutters
Large-format loading and unloading automation for 2000 x 4000 mm sheet metal, arranged one-to-two for two laser cutting machines with a 5000 kg trolley.

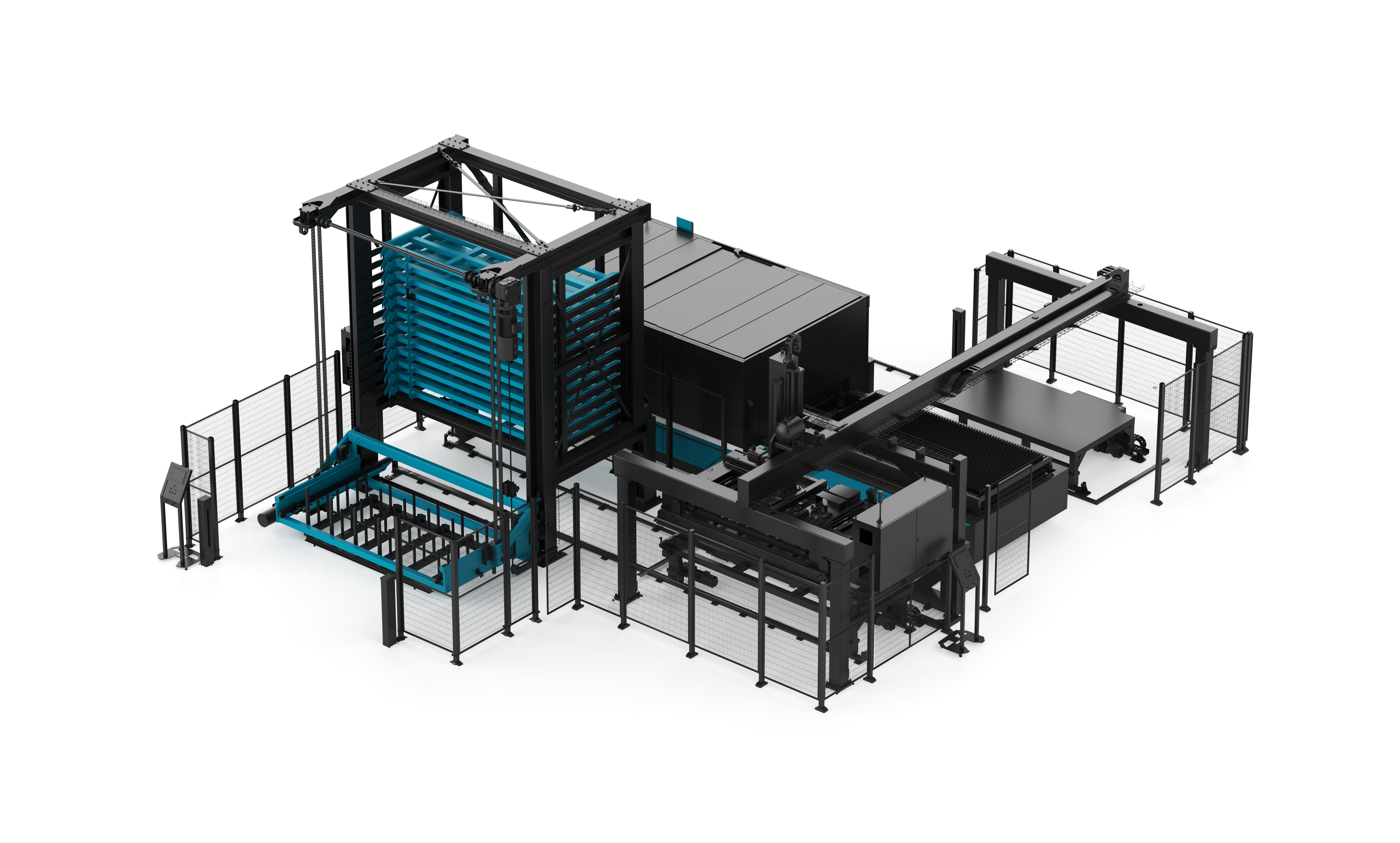

D-Trans 2040 loading and unloading system sized for 2000 x 4000 mm sheets.Trolley rated at 5000 kg, with 3 t per tabletop and a 5 t option.
Product Summary
The D-Trans 2040 is a frame-type automatic loading and unloading system for laser cutting lines that work with 2000 x 4000 mm sheet metal. The loading and unloading system is rated for a maximum load of 1000 kg, or 1600 kg depending on configuration, while the trolley carries up to 5000 kg and each tabletop supports 3 t with a 5 t option. Sheet thickness on this model runs from 0.8 mm to 15 mm. A single-tower material storage in 6, 8, 12 or 15 layers buffers blanks and finished parts. Sheet thickness detection, mechanical vibration for thin-sheet separation and mechanical air blowing for sheet layering are standard. The system is laid out one-to-one or one-to-two and connects to 1 or 2 laser cutting machines, which makes it suitable for a two-cutter cell fed by a single automation unit. The frame-type structure is built in carbon steel by DNE LASER, a subsidiary of the Swiss Bystronic Group.
Key Features
Maximum sheet size 2000 x 4000 mm - covers the large-format cutting beds used in heavy fabrication, so oversized blanks are handled without manual lifting.
Loading and unloading load of 1000 kg / 1600 kg - the heavier configuration matches thicker, larger blanks on a 2000 x 4000 mm format.
Trolley load 5000 kg and 3 t per tabletop with a 5 t option - higher transport capacity per cycle for large sheet stacks.
Up to two laser cutting machines from one automation unit - the one-to-two layout connects 1 or 2 cutters, so one storage tower serves two cutting cells.
Single-tower material storage in 6, 8, 12 or 15 layers - buffer depth is selected against the cutting plan.
Mechanical vibration sheet separation and air blowing layering as standard - supports reliable single-sheet pick-up on 0.8-15 mm material.
Technical Specifications
Model
D-Trans 2040
Product type
Automatic loading and unloading system
Maximum sheet metal size
2000 x 4000 mm
Sheet metal thickness
0.8-15 mm
Loading and unloading system maximum load
1000 kg / 1600 kg
Trolley load
5000 kg
Maximum load per tabletop
3 t, 5 t (optional)
Material storage type
Single-tower
Material storage
6 / 8 / 12 / 15 layers
Loading and unloading system type
Frame type
Layout type
One-to-one / One-to-two
Connectable laser cutting machines
1 / 2
Mechanical vibration for sheet separation
Standard for thin sheets
Mechanical air blowing for sheet layering
Standard configuration
Sheet thickness detection
Standard configuration
Main material
Carbon steel
Models and Options
The D-Trans 2040 is the larger of the two D-Trans builds. The D-Trans 1530 covers 1500 x 3000 mm sheets, 0.8-20 mm thickness, a 900 kg loading and unloading load, a 3000 kg trolley and 3 t per tabletop. The 2040 raises the sheet format to 2000 x 4000 mm and the trolley to 5000 kg. Shared options include the traceless gear shaper, raw material and finished product electric trolley, double-layer raw material and finished product electric trolley, and material warehouse trolley.
Materials and Structure
The system uses a frame-type loading and unloading structure in carbon steel, combined with a single-tower material storage. Thin sheets are separated by mechanical vibration and layered by mechanical air blowing, and sheet thickness detection is integrated as standard equipment.
Applications
Manufacturing
Automotive
Machine tool
Kitchenware
Environmental protection machinery
Cleaning machinery industries
Customization
Storage can be specified at 6, 8, 12 or 15 layers. The line can be arranged one-to-one or one-to-two, and the tabletop load can be specified at 3 t or the 5 t option. Optional equipment covers the traceless gear shaper, raw material and finished product electric trolley, double-layer raw material and finished product electric trolley, and material warehouse trolley.
FAQ
What sheet format does the D-Trans 2040 cover?
A maximum sheet metal size of 2000 x 4000 mm, with a sheet thickness range of 0.8-15 mm.
How much load can it handle?
The loading and unloading system is rated at 1000 kg or 1600 kg, the trolley at 5000 kg, and each tabletop at 3 t with a 5 t option.
How many laser cutters can be connected?
The layout type is one-to-one or one-to-two, and the system connects to 1 or 2 laser cutting machines.
What storage capacity is available?
Single-tower material storage is offered in 6, 8, 12 or 15 layers.
Why is the thickness range different from other D-Trans models?
The D-Trans 2040 is specified for 0.8-15 mm, while the D-Trans 1530 is specified for 0.8-20 mm.
Is sheet separation automated?
Yes, mechanical vibration for sheet separation is standard for thin sheets and mechanical air blowing for sheet layering is standard configuration.
What options can be added?
Traceless gear shaper, raw material and finished product electric trolley, double-layer raw material and finished product electric trolley, and material warehouse trolley.
